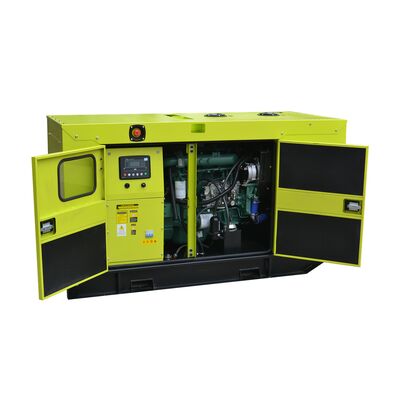

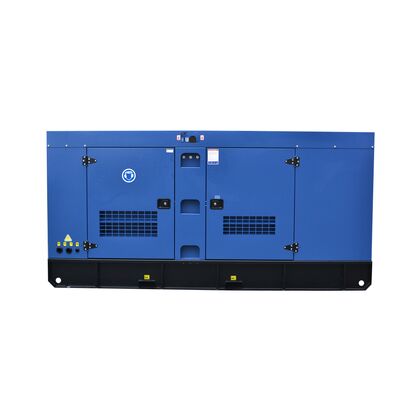

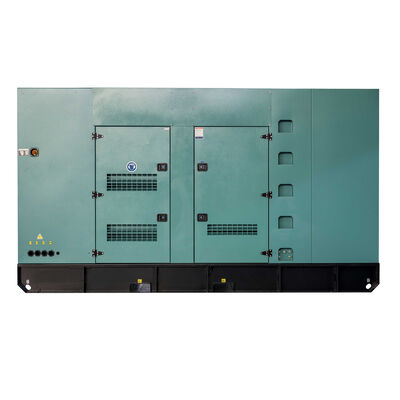

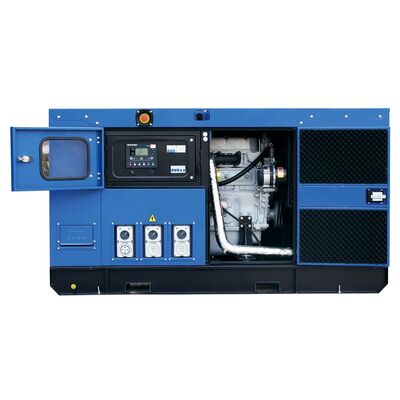

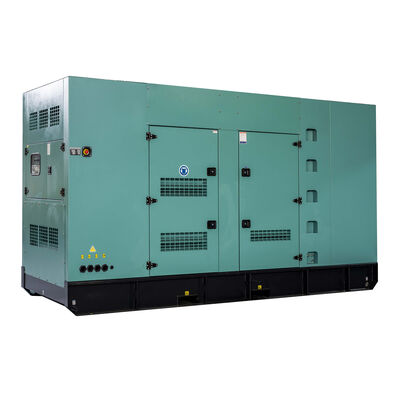

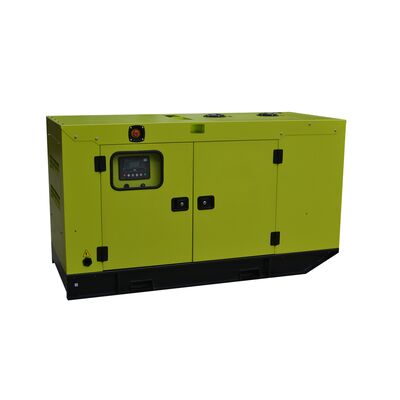

Customized factory price open/silent type SDEC diesel generator providing reliable 110KW/138KVA backup power supply with water cooling system. Available in both open and silent configurations to meet diverse operational requirements.
| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 138 | 151 |
| Power Rating (kW) | 110 | 121 |
| Frequency (Hz) | 50 | |
| Engine Model | 6HTAA6.5-G21 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| Power Factor | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
| Model | BSD151 | BSD151 |
|---|---|---|
| Type | Open Type | Silent Type |
| Length (L) mm | 2500 | 3150 |
| Width (W) mm | 800 | 1120 |
| Height (H) mm | 1760 | 1700 |
| Tank Capacity (L) | 253 | 253 |
| Engine Model & Manufacturer | 6HTAA6.5-G21 (SDEC) |
| Engine Type | In-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler |
| Combustion Type | Direct injection |
| Cylinder Type | Dry liner |
| Number of Cylinders | 6 |
| Bore × Stroke | 105 × 124 mm |
| Displacement | 6.5 lit. |
| Compression Ratio | 16 : 1 |
| Firing Order | 1-5-3-6-2-4 |
| Fuel Injection Advance Angle | 10.5°BTDC |
| Dry Weight | 600 kg |
| Dimension | 1343×741×1267 mm |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-274E |
| Alternator Rated Power | 110kw/138kva |
| Rated Voltage (V) | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Insulation Class | H class |
