| Parameter | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 350 | 385 |
| Power Rating (kW) | 280 | 308 |
| Frequency (Hz) | 50 | |
| Engine Model | YM6S9L-DB | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| Power Factor (PF) | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (Customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8 hours @ 75% load | |

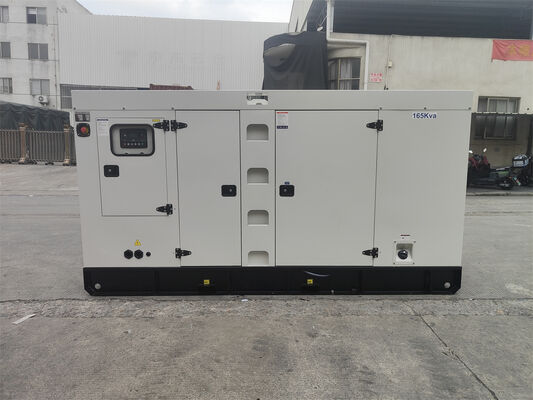

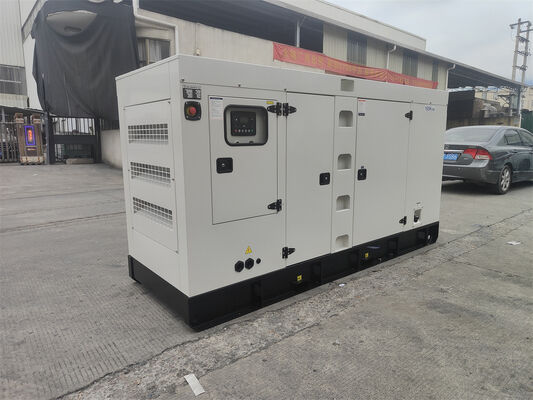

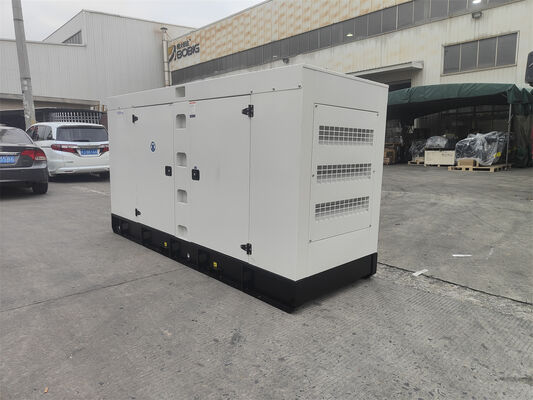

| Model | BYT385 (Open Type) | BYT385S (Silent Type) |
|---|---|---|
| Length (mm) | 3100 | 3860 |
| Width (mm) | 1050 | 1400 |
| Height (mm) | 2100 | 2000 |
| Tank Capacity (L) | 644 | 644 |
| Engine Model & Manufacturer | YM6S9L-DB (YTO) |
| Number of Cylinders | 6 |
| Cylinder Arrangement | In-line |
| Cycle | 4 stroke, compression ignition |
| Air Aspiration Method | Turbocharged with air to air cooler |
| Cooling Medium | Liquid |
| Bore | 126 mm |
| Stroke | 155 mm |
| Compression Ratio | 17.0:1 |
| Cubic Capacity | 11.596 L |
| Dry Engine Weight | 1100 kg |
| Dimensions (L×W×H) | 1229×1813×965 mm |
| Rotation Direction | Anti-clockwise viewed on flywheel |
| Governed Engine Speed | 1500 RPM |
| Firing Order | 1-5-3-6-2-4 (1 cylinder furthest from flywheel) |
| Standby Power | 344 kW |
| Adaptive Power Station | 310 kW |
| Steady State Speed Stability | ≤ 3% |
| Alternator Brand | BOBIG |
| Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-314ES |
| Rated Power | 280kW / 350kVA |
| Rated Voltage | 230V / 400V |
| Rated Frequency | 50Hz |
| Connecting Type | 3 Phase and 4 Wire |
| Number of Bearings | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Specific Fuel Consumption | ≤ 205g/kW·h |
| Transient State Voltage | ≤-15% ~ +20% |
| Engine | Alternator | Fuel System | Generating Set |
|---|---|---|---|
|
|
|
|
