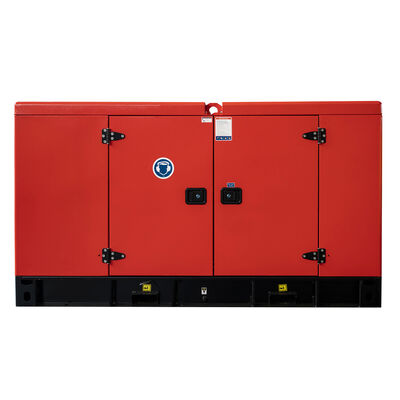

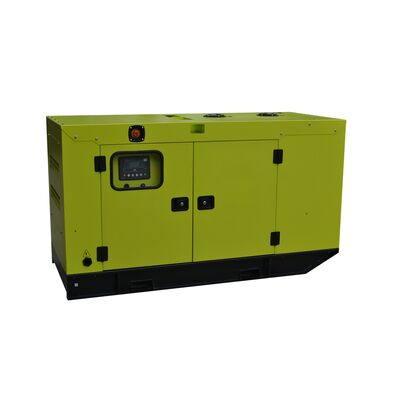

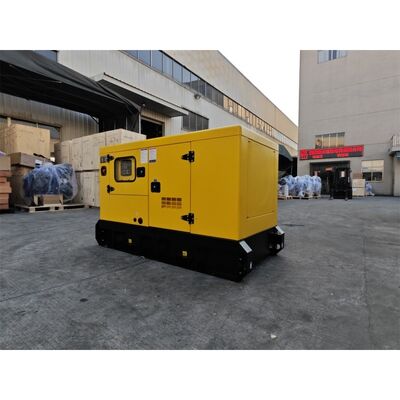

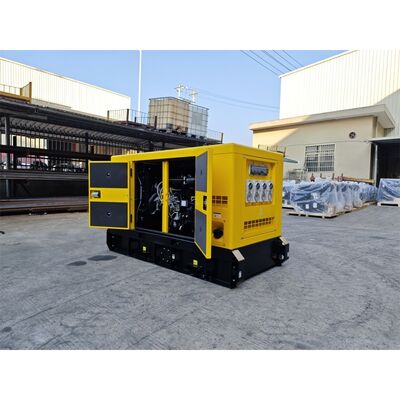

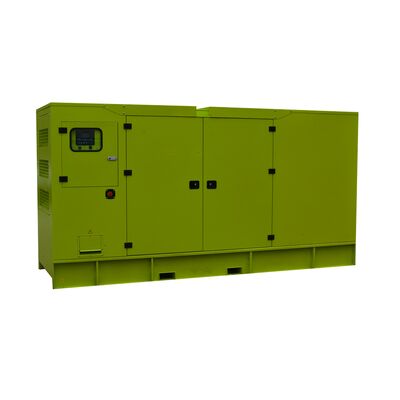

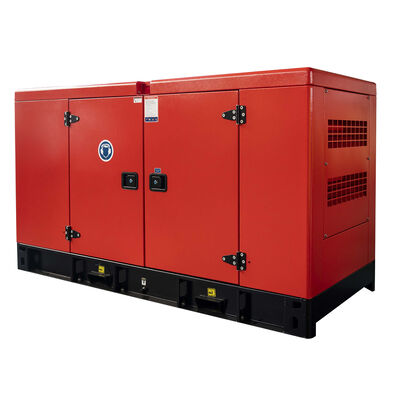

High quality water cooling QUANCHAI diesel generator available in both open and silent configurations to meet diverse operational requirements.
| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 13 | 14 |
| Power Rating (kW) | 10 | 11 |
| Frequency (Hz) | 50 | |
| Engine Model | YN25ANJ18 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (According to customer requirements) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP (Standby Power): Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
| Model | BYN14 (Open Type) | BYN14S (Silent Type) |
|---|---|---|
| Length (L) mm | 1350 | 1850 |
| Width (W) mm | 665 | 880 |
| Height (H) mm | 965 | 1030 |
| Tank Capacity (L) | 23 | 23 |
| Engine Model & Manufacturer | YN25ANJ18 (YUNNEI) |
| Engine Rated Speed (rpm) | 1500 |
| Generator Set Frequency (Hz) | 50 |
| Engine Prime Power (PRP) (kW) | 18 |
| Length (L) mm | 900 |
| Width (W) mm | 540 |
| Height (H) mm | 760 |
| Engine Dry Weight w/o Cooling System (kg) | 200 |
| Aspiration Type | Nature |
| Injection Type | Direct |
| Configuration | Vertical |
| No. of Cylinders | 4 |
| Displacement (liters) | 2.54 |
| Bore (mm) | 90 |
| Stroke (mm) | 100 |
| Compression Ratio | 17.5 |
| Piston Speed (m/s) | 5.0/6.0 |
| Rotation Direction (from flywheel) | Anti-clockwise |
| Number of Flywheel Teeth | 109 |
| Flywheel House Size | SAE4 |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-164C |
| Alternator Rated Power | 10kw/13kva |
| Rated Voltage (V) | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%～+20% |
