| Specification | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 45 | 50 |
| Power Rating (kW) | 36 | 40 |
| Frequency (Hz) | 50 | |
| Engine Model | 1103A-33TG1 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |

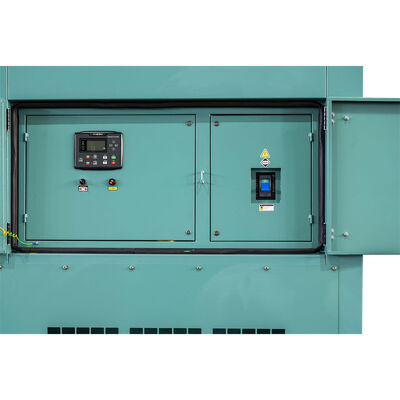

| Control System | Digital | |
| Rated Voltage (V) | 400/230 (customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |

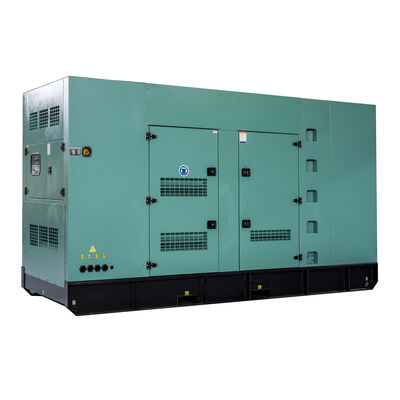

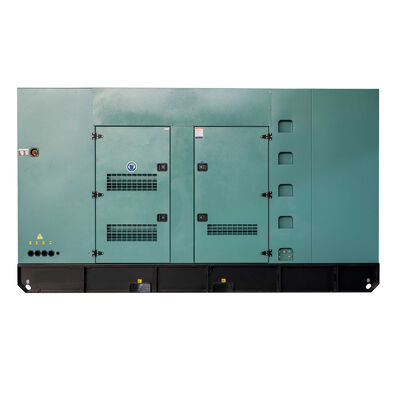

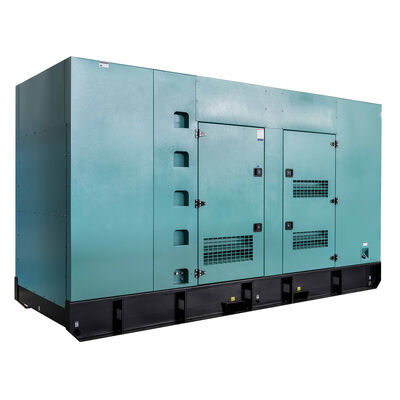

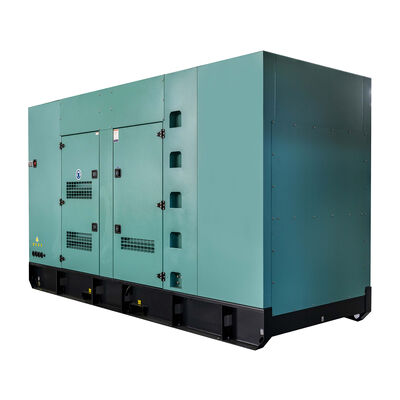

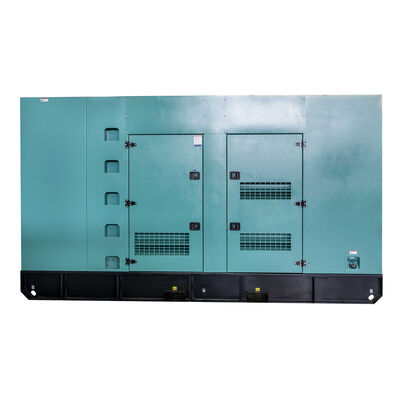

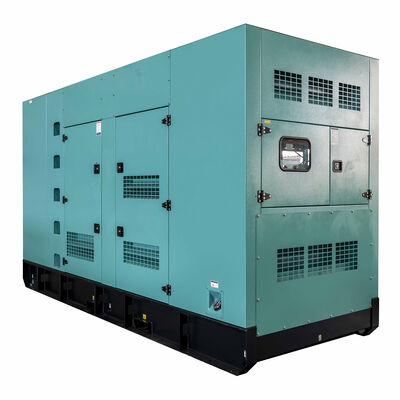

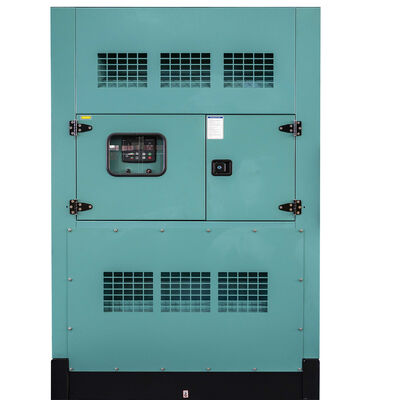

| Model Type | BP50 (Open) | BP50S (Silent) |
|---|---|---|
| Length (mm) | 1600 | 2000 |
| Width (mm) | 700 | 930 |
| Height (mm) | 1200 | 1250 |
| Tank Capacity (L) | 83 | 83 |

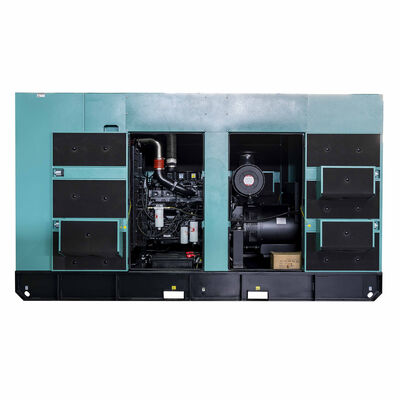

| Engine Model & Manufacturer | 1103A-33TG1 (PERKINS) |
| Number of Cylinders | 3 |
| Cylinder Arrangement | Vertical inline |
| Cycle | Four stroke |
| Aspiration | Turbocharged |
| Bore x Stroke | 105 x 127 mm |
| Cubic Capacity | 3.3 L |
| Compression Ratio | 17.25:1 |
| Governor Type | Mechanical |
| Cooling System | Force Water Cooling Cycle |
| Total Lubrication System Capacity | 8.3 L |
| Coolant Capacity (engine only) | 11.8 L |
| Fuel Consumption @ 100% load | 207 g/kWh @1500 rpm |
| Starter Motor | DC 24V |
| Charge Alternator | DC 24V |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-224C |
| Alternator Rated Power | 36kw/45kva |
| Rated Voltage (V) | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%~+20% |
