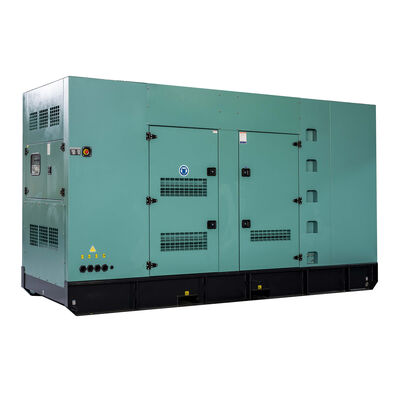

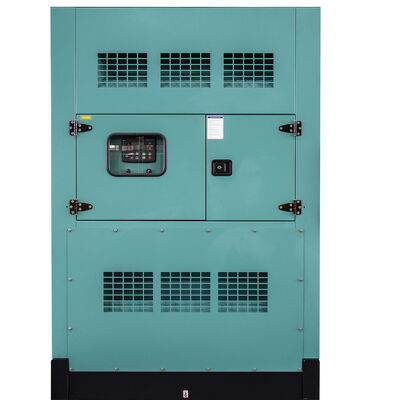

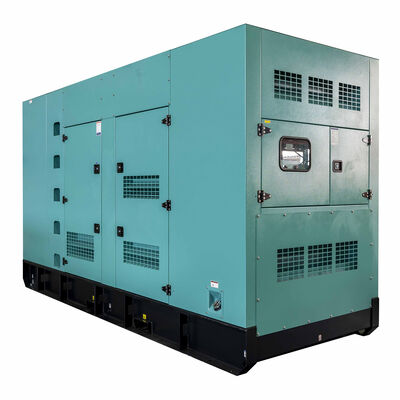

40kW 50KVA BOBIG ISUZU Diesel Generator (Model: JE493ZLDC-02)
Our 40kW 50KVA BOBIG ISUZU diesel generator (Model: JE493ZLDC-02) is designed to provide reliable power for a wide range of applications. Backed by the renowned ISUZU brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
Rated Power: 40kW (50KVA) - meets power needs for various industrial, commercial, and residential applications
Frequency: 50Hz standard frequency suitable for most electrical equipment
Engine Excellence
Engine Model: JE493ZLDC-02 ISUZU engine with advanced technology and high-quality manufacturing
Engine Speed: 1500 RPM for smooth and consistent power supply
Technical Specifications
| General Information |
Prime Power |
Standby Power |
| Rated Power (kVA) |
50 |
55 |
| Power Rating (kW) |
40 |
44 |
| Frequency (Hz) |
50 |
| Engine Model |
JE493ZLDC-02 |
| Engine Speed (RPM) |
1500 |
| Phase |
3 |
| PF |
0.8 |

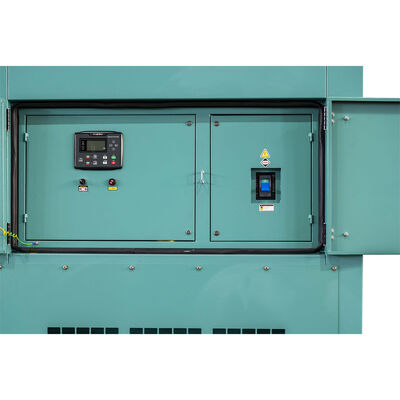

| Control System |
Digital |
| Rated Voltage (V) |
400/230 (customizable) |
| Fuel Tank Capacity Operating Time |
≥ 8h @ 75% load |
Dimensions and Weight
| Model |
BJL55 (Open Type) |
BJL55S (Silent Type) |
| Length (mm) |
1850 |
2500 |
| Width (mm) |
730 |
930 |
| Height (mm) |
1350 |
1200 |
| Tank Capacity (L) |
92 |
92 |

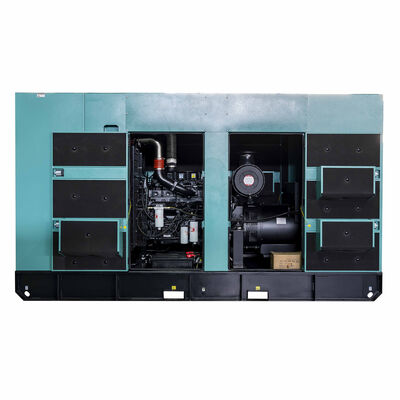

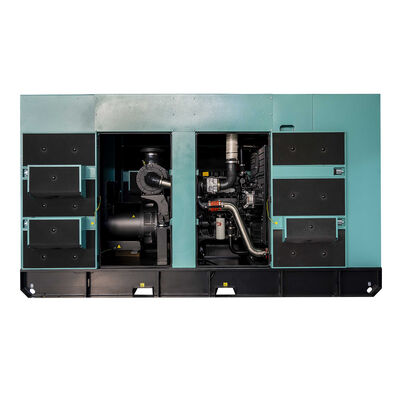

Engine Specifications
| Engine Model & Manufacturer |
JE493ZLDC-02 (ISUZU) |
| Engine Type |
Water cooling, in line, four-stroke, wet liner and direct injection |
| Number of Cylinders |
4 |
| Bore×Stroke (mm) |
93×105 |
| Aspiration |
Intercooling turbo |
| Displacement |
2.85 |
| Compression Ratio |
18.2:1 |
| Firing Order |
1-3-4-2 |
| Rated Output (Kw) |
51 |
| Maximum Power (Kw) |
56 |
| Oil Consumption Rate (g/kW.h) |
≤210 |
| Noise (dB(A)) |
≤93dB(A) |
Alternator Specifications
| Alternator Brand |
BOBIG |
| Manufacturer |
FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model |
BW-224D |
| Rated Power |
40kw/50kva |
| Rated Voltage |
230v/400v |
| Protection Grade |
IP23 |
| Exciter Type |
Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class |
H class |
Environmental Adaptability
Ambient Temperature: Operates effectively in +5°C to +40°C range
Altitude: Suitable for use up to 1000m (custom solutions available for other conditions)
Compliance Standards
Complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications for quality, safety, and reliability.
Applications
- Industrial Use: Backup power for factories ensuring continuous production during outages
- Commercial Buildings: Power for office buildings, shopping malls, and hotels
- Residential Areas: Reliable power for communities with unstable power grids
Warranty and Service
One year or 1000 hours warranty (whichever comes first) with free spare parts for manufacturing defects. 24/7 technical support and maintenance services available.
Why Choose Us
- Brand Reputation: Trusted ISUZU brand with proven reliability
- Quality Assurance: Manufactured to international standards with rigorous inspections
- Customization Options: Tailored solutions for specific requirements
Company Information
We are an electrical machinery manufacturer with 10,000 square meters factory area, 160 employees, and 20 technicians. Our product range includes gasoline generators, diesel generators (5-2000kva), gas generators, and pumps. We maintain ISO9000 Quality System Certification and advanced testing equipment.
Factory Overview
Frequently Asked Questions
Q: What is your MOQ, payment method, and delivery time?
A: MOQ is 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Delivery: 10-15 working days after deposit.
Q: Can you customize voltage, frequency, and specifications?
A: Yes, all specifications can be customized according to your requirements.
Q: Do you provide spare parts and distributor opportunities?
A: Yes, we provide spare parts and welcome distributors worldwide with certification and agreements.
