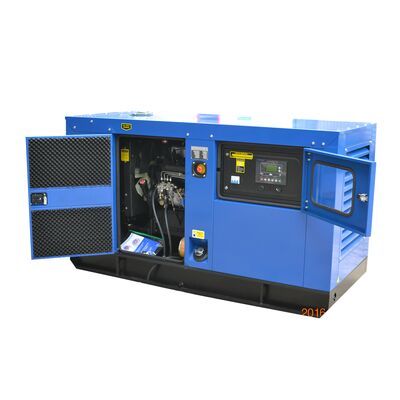

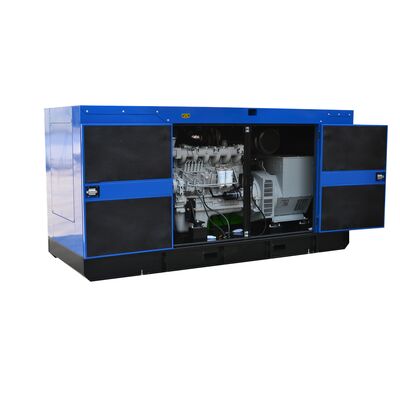

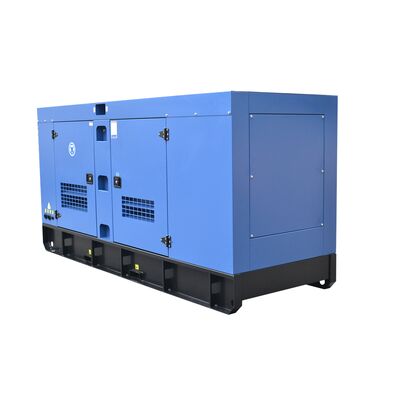

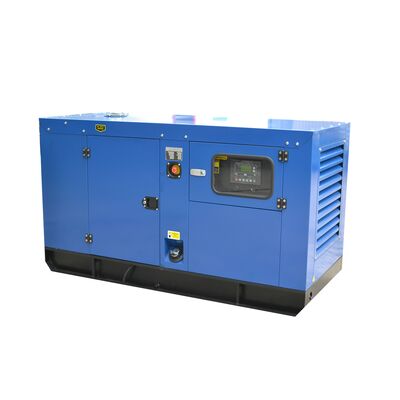

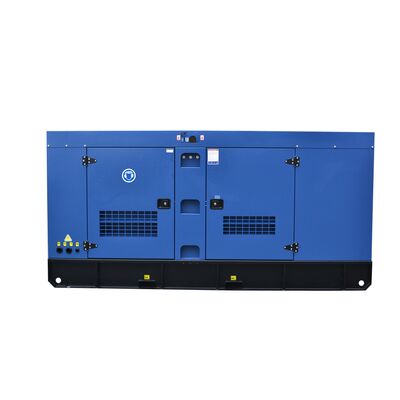

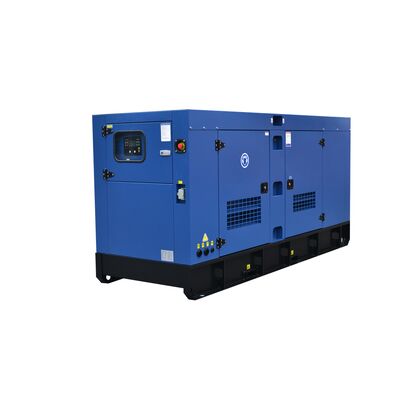

Our 280kW 350KVA BOBIG YTO diesel generator (Model: YM6S9L-DB) is designed to provide reliable power for a wide range of applications. Backed by the YTO brand, it offers high-quality performance and long-term durability.
Rated Power: 280kW (350KVA) with stable and efficient prime power output ensuring continuous operation even under heavy loads. Frequency: Standard 50Hz operation suitable for most electrical equipment.
Powered by YM6S9L-DB YTO engine with advanced technology, high torque, fuel efficiency, and low emissions. Engine Speed: 1500 RPM for smooth, consistent power supply.
| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 350 | 385 |
| Power Rating (kW) | 280 | 308 |
| Frequency (Hz) | 50 | |
| Engine Model | YM6S9L-DB | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (Customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
| Parameter | Specification |
|---|---|
| Engine Model & Manufacturer | YM6S9L-DB (YTO) |
| Number of Cylinders | 6 |
| Cylinder Arrangement | In-line |
| Cycle | 4 stroke, compression ignition |
| Air Aspiration | Turbocharged with air to air cooler |
| Cooling Medium | Liquid |
| Bore | 126 mm |
| Stroke | 155 mm |
| Compression Ratio | 17.0:1 |
| Cubic Capacity | 11.596 L |
| Dry Engine Weight | 1100 kg |
| Parameter | Specification |
|---|---|
| Alternator Brand | BOBIG |
| Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-314ES |
| Rated Power | 280kW/350kVA |
| Rated Voltage | 230V/400V |
| Protection Grade | IP23 |
| Insulation Class | H class |
| Model | BYT385 (Open) | BYT385S (Silent) |
|---|---|---|
| Length (mm) | 3100 | 3860 |
| Width (mm) | 1050 | 1400 |
| Height (mm) | 2100 | 2000 |
| Tank Capacity (L) | 644 | 644 |
Plywood case packaging. Delivery within 10-15 working days after receiving customer deposit.
BOBIG products carry a one-year or 1000-hour warranty (whichever comes first). Professional after-sales service team available 24/7 for technical support and maintenance.
MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Delivery: 10-15 working days after deposit.
Fuzhou port, Fujian province or as customer requested.
