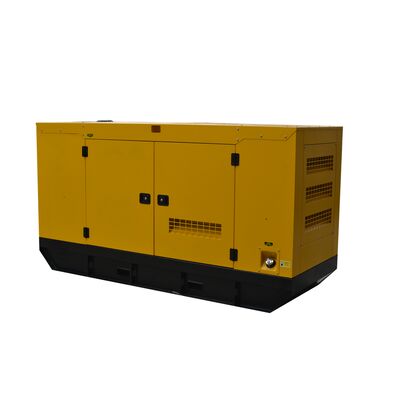

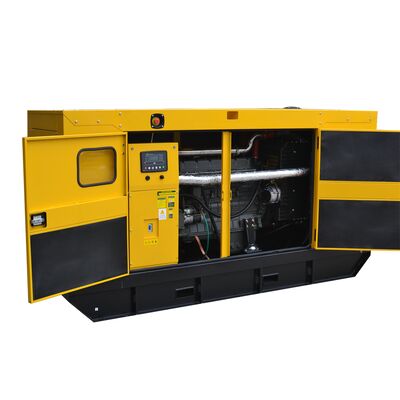

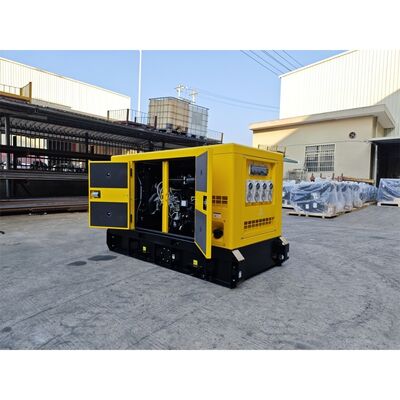

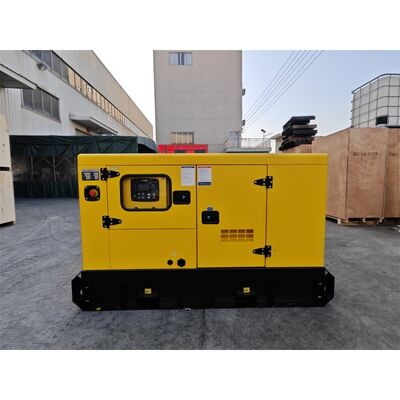

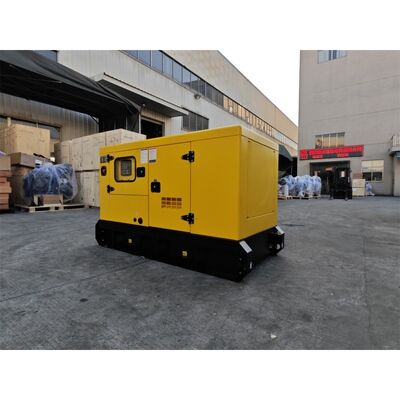

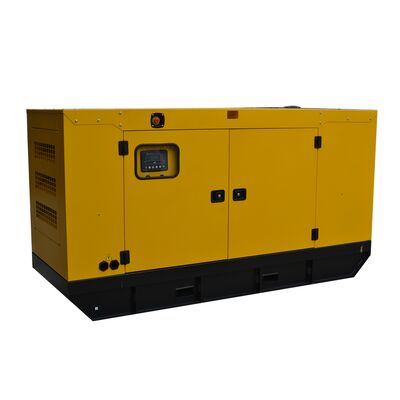

Super Silent 64kw diesel Generator Set for Home Use YANGDONG engine 64kw 80kva Portable Standby Power diesel Generators Powerful Generator

Super Silent 64kw diesel Generator Set for Home Use  YANGDONG engine 64kw 80kva Portable Standby Power diesel Generators Powerful Generator
คุณสมบัติ คลังภาพ รายละเอียดสินค้า ขออ้าง
คุณสมบัติ
ข้อมูลจำเพาะ
กันสาด: ปรับแต่ง
การรับประกัน: 12 เดือน/1,000 ชม
พิมพ์: เงียบ(เงียบสุด)หรือเปิด, เงียบ, ฯลฯ, แถวเรียง/6 สูบ/4 จังหวะ/4 วาล์ว/19 ลิตร, หลังคากันเสียง(เงียบ)
แผงควบคุม: จอแสดงผลดิจิตอล LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
ประเภทเอาต์พุต: AC เดี่ยว/สามเฟส
ตัวควบคุม: Deepsea/Smartgen/ฯลฯ
ใบสมัคร: ธนาคาร Industy เป็นต้น
แรงดันไฟฟ้าที่ได้รับการจัดอันดับ: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
เครื่องกำเนิดไฟฟ้ากระแสสลับ: มาราธอน, สแตมฟอร์ด, SLG/สแตมฟอร์ด/มาราธอน/เมกกะเทิล/ลีรอย-ซอเมอร์, สแตมฟอร์ดหรือนิวเทค, อิงกา
ชื่อสินค้า: เครื่องกำเนิดไฟฟ้าดีเซล, เครื่องกำเนิดไฟฟ้า 250kw, ขับเคลื่อนโดยเครื่องกำเนิดไฟฟ้าดีเซล YUCHAI, เครื
สี: ความต้องการของลูกค้า
ความถี่: 50/60เฮิร์ต
กำลังไฟพิกัด: 80KVA
เครื่องยนต์: ยู่ช่าคนเดิม
วิธีการทำความเย็น: ระบบระบายความร้อนด้วยน้ำ
เน้น:

64kw diesel generator for home

,

portable standby power generator

,

Yangdong diesel generator with warranty

ข้อมูลพื้นฐาน
สถานที่กำเนิด: จีน
ชื่อแบรนด์: YANGDONG
ได้รับการรับรอง: CE
หมายเลขรุ่น: Y4110ZLD
การชำระเงิน
รายละเอียดการบรรจุ: ไม้อัด
เวลาการส่งมอบ: 30 วัน
สามารถในการผลิต: 500pcs ต่อเดือน
รายละเอียดสินค้า
64kW 80KVA BOBIG YANGDONG Diesel Generator (Model: Y4110ZLD)
Product Introduction

Our 64kW 80KVA BOBIG YANGDONG diesel generator (Model: Y4110ZLD) is designed to provide reliable power for a wide range of applications. Backed by the YANGDONG brand, it offers high-quality performance and long-term durability.

Key Features
Power Performance
  • Rated Power: 64kW (80KVA) to meet power needs of various industrial, commercial, and residential applications
  • Frequency: Standard 50Hz operation suitable for most electrical equipment
Engine Excellence
  • Engine Model: Y4110ZLD YANGDONG engine with high torque, fuel efficiency, and low emissions
  • Engine Speed: 1500 RPM for smooth and consistent power supply
Technical Specifications
General Information
Prime Power Standby Power
Rated Power (kVA) 80 88
Power Rating (kW) 64 70
Frequency (Hz) 50
Engine Model Y4110ZLD
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated voltage (V) 400/230
Fuel tank capacity operating time ≥ 8h @ 75% load
PRP Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Engine Specifications
Engine Model & Manufacturer Y4110ZLD(YANGDONG)
No. of cylinders 4
Injection Type Direct
Aspiration Turbocharged
Configuration Vertical
Bore 110 mm
Stroke 118 mm
Compression ratio 18
Displacement 4.3 L
Dry engine weight 370 kg
Dimension(L*W*H) 892*618*740
The Flywheel shell interface SAE3
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-224G
Alternator Rated Power 64kw/80kva
Rated voltage (V) 230v/400v
Rated frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Dimensions and Weight
Model BY88 Open type BY88S Silent type
Length (L) mm 1850 2600
Width (W) mm 730 930
Height (H) mm 1350 1220
Tank capacity (L) 147 147
Applications
  • Industrial Use: Backup power source for factories during power outages
  • Commercial Buildings: Power for office buildings, shopping malls, and hotels
  • Residential Areas: Reliable power for communities with unstable power grids
Warranty and After-sales Service

BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, we provide free easy-damageable spare parts caused by our production quality or raw material. After expiration, we provide cost spare parts maintenance.

Company Information

We are an electrical machinery manufacturer with a total factory area of 10,000 square meters, including 1,000sqm standard construction area, with 160 employees (including 20 technicians). Our main products include gasoline generators, diesel generators 5-2000kva, gas generator, pumps etc.

Super Silent 64kw diesel Generator Set for Home Use  YANGDONG engine 64kw 80kva Portable Standby Power diesel Generators Powerful Generator 0
Super Silent 64kw diesel Generator Set for Home Use  YANGDONG engine 64kw 80kva Portable Standby Power diesel Generators Powerful Generator 1
Frequently Asked Questions
1. What is your MOQ, payment method, delivery time?
Our MOQ is only 1 set. Payment method usually is 30% T/T as deposit, 70% balance T/T before delivering. Delivery period normally will be 10~15 working days after receiving customers' deposit.
2. Which port do you often use when export?
Fuzhou port, Fujian province or as customer request.
3. Is there any spare parts you can provide along with generators to make the maintenance convenient?
We can provide regular engine's air filter, water filter, fuel filter, oil filter to customers for self-maintenance.
